Wingtip to Wingtip 2.0: How Modern Winglet Designs Are Revolutionizing Fuel-Efficient Aircraft

For decades, the aviation industry has been forced to reduce fuel consumption. Aviation fuel, which is a kerosene-based fuel, primarily Jet-A or Jet-A1 for civil aviation, and JP-8 for military, is extremely costly, industry invests billions of dollars in it annually.

It is the dream of all scientists and researchers to minimize the cost of aviation fuel in aircraft. Many experiments have been carried out to make such aircraft in which aviation fuel consumption is low. During that time, NASA scientist Dr. Richard T. Whitcomb invented the Winglet after experimenting in his lab. Winglet has proved to be a huge breakthrough for the aviation industry, as today, it saves millions of gallons of fuel 4% to 6%, which results in saving billions of dollars and, along with that, it is also very effective in technical parameters, as it increases the efficiency, performance and range of our aircraft. Today you can see the Winglet in most modern aircraft, whether it is a commercial or a military jet.

In this article I mention how the winglet is highly efficient, what impact it had on our environment and how much it improved fuel efficiency, reducing emissions, and influencing aircraft design philosophies.

The Evolution of Winglet Design and Performance

Even before the first take-off of the Wright Brothers, many engineers were publishing their theories and scientific experiments. Among them, in the late 1800s, British engineer Frederick W. Lanchester conceptualized the theory of wingtip vortices.

However, following the take-off of the Wright Brothers, a lot more practical development was witnessed, which involved a lot of lab experiments. NASA invented the winglet in 1970. It was designed by Dr. Richard T. Whitcomb for drag reduction, which is very much needed as the aircraft wing produces a lift force opposite to the gravitational force due to which the airplane flies in the air. But we need such a wing which produces more lift force, not the drag force which stops the airplane from moving to forward direction. If the wing produces more lift, then the performance and efficiency of aircraft will be much better. Along with producing lift, the wing of an aircraft also produces wingtip vortices, which  produces induced drag, reduces the efficiency of the aircraft and burns more fuel. For this, airlines need winglet that can reduce fuel cost and improve range.

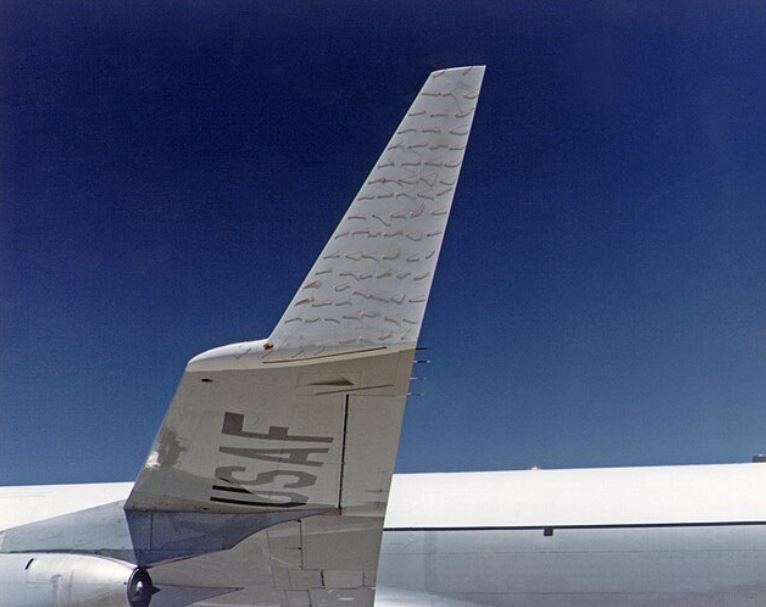

The winglet was first tested on KC-135 and Gulfstream II aircraft, where NASA proved that the winglet has the capability to reduce fuel consumption by a factor of 4-6%. However, its adoption was initially difficult because of manufacturing and certification challenges.

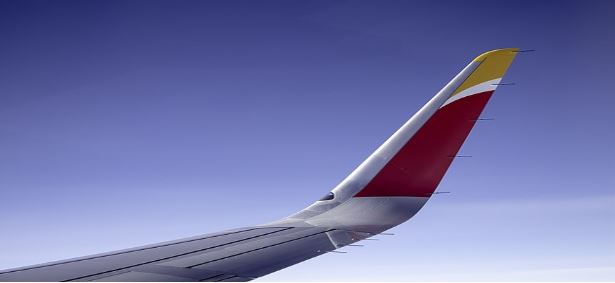

The Boeing 747-400 was the first commercial jet to use large, upward-angled canted winglets in 1989. Later, Airbus used its own winglet version called sharklets which were first offered as a retrofit option for the A320 family around 2012. And today you will find winglets in all the modern commercial aircraft: 737 MAX, A350, 787, A330neo, etc.

But with the passage of time, a lot more wingtips have been invented because they have proven to be very effective, due to which a lot of technical, economical as well as environmental benefits have been seen, so today you can see winglets of many different shapes and styles, which reduce fuel consumption differently and below is the table of different winglet type.

Winglet Type	Aircraft Models (Examples)	Approx. Fuel Savings	Source
Blended Winglets	Boeing 737 NG, 757, 767	3% – 5%	Aviation Partners Boeing (APB), FAA Reports
Wingtip Fences	Airbus A320 family (older models)	1.5% – 2.5%	Airbus Technical Data, ICAO Reports
Sharklets	Airbus A320neo, A321neo	3.5% – 4.5%	Airbus, EASA Fuel Efficiency Guidelines
Split Scimitar Winglets	Boeing 737-800, 737 MAX	1.5% – 2% (over blended)	Aviation Partners Boeing (APB), Boeing
Raked Wingtips	Boeing 777, 787	3.5% – 5%	Boeing, NASA Aeronautics Research
Advanced Technology Winglets	Boeing 737 MAX	~1.8% (over blended)	Boeing 737 MAX Performance Brief
Spiroid Winglets	Experimental (e.g., Gulfstream GIII)	Up to 10% (in tests)	NASA, Aviation Partners Inc. (API)
Canted Winglets	Early business jets (e.g., Gulfstream G550)	~2% – 3%	Gulfstream Aerospace, NBAA Papers
Elliptical Winglets	Some modern business jets (e.g., Falcon 2000LX)	~4%	Dassault Aviation, FlightGlobal
Winglet-less (Clean Wing)	Some regional jets, optimized wing shapes	Varies (design dependent)	OEM Aerodynamic Studies (e.g., Embraer, Bombardier)

The winglet is not only beneficial for aircraft fuel but also for the performance of the aircraft, like:

• Fuel savings: 3%–6% depending on aircraft and design.
• Increased range.
• Lower CO2 emissions.
• Improved climb rate and cruise performance.
• Reduced noise footprint in some cases.

After using the winglet in commercial aircraft and seeing its benefits, it started being used in military (like the KC-135)) and business jets ( like the Gulfstream G500, Falcon 7X) too. But it is mostly seen in military cargo aircraft to increase its efficiency and only advanced types of winglets are used in business jets.

The Science Behind Winglets

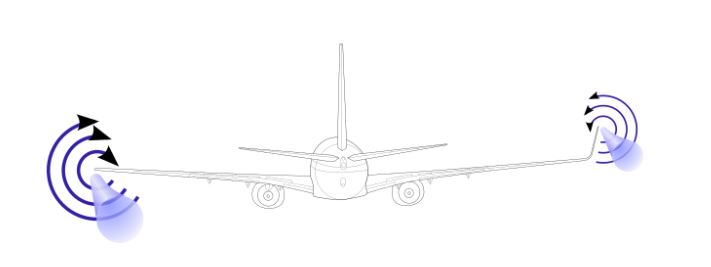

When air passes over aircraft, there is lower static pressure on the upper surface of the wing and higher pressure on the bottom of the wing, but the high-pressure air at the wingtips starts to move towards the upper surface of the wing cause the air curls and forms wingtip vortices, generate the induced drag (which is a direct link to lift generation). The winglet acts like a barrier that reduces the strength of the vortices, thereby reducing induced drag.

Here are some technical terms related to winglets that we should know about.

Key Winglet Parameters

• Cant Angle:
  The angle between the winglet and the vertical axis (typically 15° to 30°). Controls how much force is directed vertically vs. horizontally.

• Toe Angle:
  The angle between the winglet and the airflow (can be slightly outward or inward to optimize airflow).

• Height:
  Typically 2–5 feet tall on commercial jets. Taller winglets are more effective but add more weight and stress.

• Sweep:
  Winglets are often swept back to match the aerodynamic design of the main wing and reduce shockwaves at high speeds.

When we apply a winglet to the wingtip, an additional weight is added due to which the moment at the wing root increases. That is why we should think a lot before making the structure of the winglet. The winglet itself should be such that it can handle bending and torsional load, especially during turbulence and banking. Winglets are generally made of composites like carbon fiber due to which their weight is low and their strength is high. And it should be applied in such a way that there is no effect on the wing flexibility.

A Boeing 757 faced a minor incident during its flight when a bird struck the winglet. Due to which the effect is, it was observed that one engine consumed more fuel while the other consumed less, which shows that although a minor winglet damage can have a big impact, it was not only the winglet that was slightly damaged but its effect was so big.

Advanced Insights on Winglets vs. Tip Extensions

Along with the winglet, there is another concept which is tip extension, in which the wing span is extended rather than bending it vertically like a winglet. Wing extension has different benefits, although both have the same purpose of reducing induced drag and improving aerodynamic efficiency. But in both methods we will see differences in air flow manipulation, load distribution, and structural impact.

However, the wing tip extension concept is used to reduce wing load or induced drag, and it is more efficient in cruise conditions as the aspect ratio gets improved. Its design is much easier, it just has to be integrated into the wing structure, one advantage is that the load is distributed over a longer span and bending moment distribution also becomes better.

It has lower drag as there is no parasite drag increase. But the problem which arises in using this is that airport ground clearance modification is required and, due to increased span, ground handling and storage have become much more difficult.

Notable aircraft examples featuring winglets and Tip Extensions

• Winglets: Boeing 737 MAX (split-scimitar), Airbus A320neo (sharklets)

• Tip Extensions: Boeing 787 Dreamliner (raked wingtips), Airbus A350 (curved wingtip devices)

Winglets Help the Environment

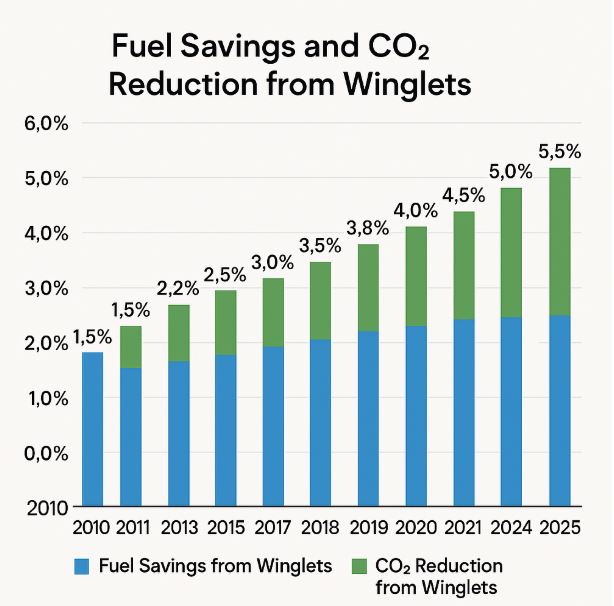

When an aircraft burns fuel, the gases emitted in the air affect the environment. It has been seen that carbon emissions increase, which is a matter to think and if such CO2 emissions continue to increase, it will become a major problem for the environment. The simplest method to reduce carbon emissions in the aviation industry is to burn less fuel, because if less fuel is burnt, then carbon emissions will also be less. As the winglet reduces induced drag which makes the aircraft burn less fuel during its flight. A single plane can save 100 tonnes of CO2 per year.

Due to winglet, the aerodynamic performance of aircraft improves significantly, resulting in lower fuel consumption allowing it to cover more distance in the same fuel tank.

The winglet reduces the wingtip vortices, which is very useful during take-off and landing as it results in lower turbulent noise, which reduces the noise pollution.

However, airlines are trying to reduce the cost of fuel. You can see, when we reduce fuel consumption there are a lot of benefits because it has less impact on the environment, and it reduces the carbon emission rate and helps protect the environment.

Conclusion

Winglet has proved to be very effective. It reduces fuel consumption and also has a huge effect on the environment and economy. Many different types of winglets have already come onto the market, but in the future, we will get to see an even more effective and efficient winglet which will deliver their performance in a much better manner and will make the aviation industry more safe and convenient. However, other concepts are also coming onto the market, like a morphing wing which can change its shape according to its requirement. Although it is currently under research and development, a prototype is also ready which defines the proof of concept of this technology. In the coming time, it is possible that we may use such a type of morphing wing to make our commercial aircraft more sustainable.
